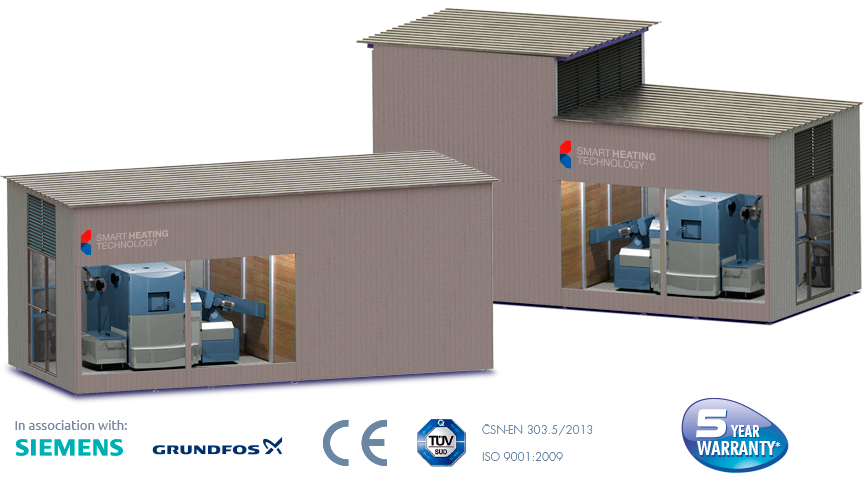

Mobile Boiler Rooms
BIO-HOUSE





















• Galvanized structure design with PUR panels specification according to customer’s requirements Hydraulic/Manual silo opening design Biomass boiler technology Smart 150–500–1500 kW Oil/gas back up boiler possibility Complete wood chips & wood pellets silo solutions Complete flue gas ways and chimney supply Complete hydraulic installation supply
Measuring and regulation system 96% burning efficiency Technical solution
flexibility Final external design possibilities + special design features



Design

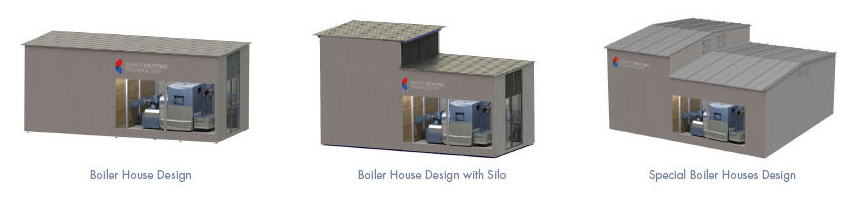

bio-house-2



Pre-Manufactured Boiler House technical solution options:

With / Without silo solution
Left / Right Bio-House design
Hydraulic / Manual roof for wood chip Boiler House design
Glass / Metal doors design
Special safety features
External design according to special customer requirement


Minimum – Maximum dimensions of the BIO-HOUSE:

3 x 3 m – 9 x 9 m


Standard Colours Design Options:

bio-house-3

Boiler room equipment:

kotelna-smart-cabin3


Boiler SMART 150–500 kW



SMART 150 kW
SMART 180 kW
SMART 200 kW
SMART 220 kW
SMART 250 kW
SMART 300 kW
SMART 350 kW
SMART 400 kW
SMART 450 kW
SMART 500 kW



TECHNICAL DATA OF SMART BOILERS
Marking    150  200 220 250 300 350 400 450 500
Nominal power Pn kW 150 200 220  250 300 350 400 450  500
Partial load (power) Pp kW 40 45 55 65 75 90 100 115  140
Boiler efficiency at Pn  % 95 95 95 95 95  95 95 95 95
Boiler efficiency at Pp  % 96 96 96 96 96 96 96 96 96
Boiler class   5 5 5 5 5 5 5 5 5









Accumulation Tank


FE AKU
FE AKU ST
